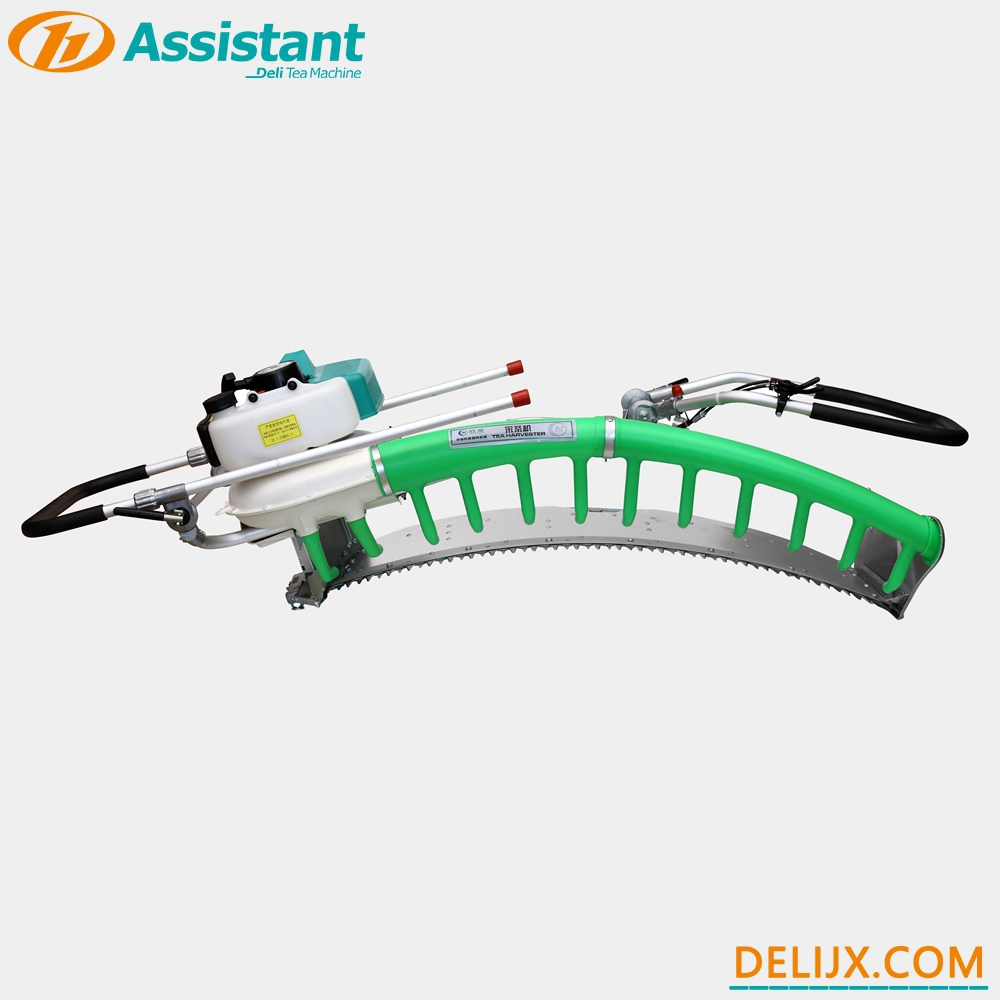

Two Man Operated Tea Plucking Machine using our own G4K 2 stroke, 41.5CC, 2.2KW gasoline engine, output power is larger than 4 stroke, please note that the ratio of engine oil to gasoline is 25:1. The performance is more stable, and will not extinguish at high temperature. Tea picking is more efficient and efficiency is 40 times that of manual labor.
The rack of Two Men Tea Plucker uses the high strength aluminum alloy, achieve the advantages of high strength, light weight. It has the advantage of light weight and durable, convenient operation, low oil consumption, low noise, small vibration, low loss rate. This Two Stroke Tea Plucking Machine adopts the patent working head, large air volume, firm structure, high picking efficiency. The air duct and fan adopts imported material, more thick and firm, longer service life.
1. SK5 carbon tool steel has been quenched with high hardness and strong wear resistance. It can cut 1cm thick branch directly.

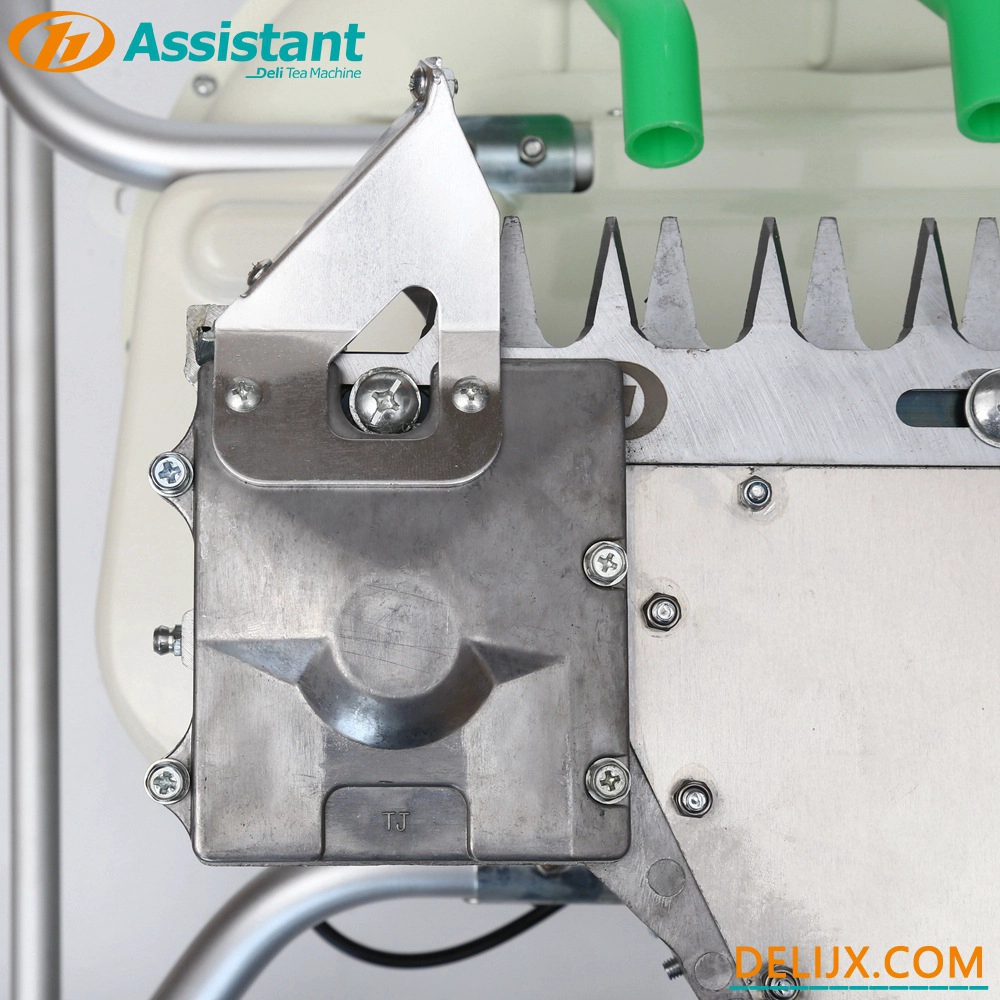

2. Since eight years ago, we were not satisfied with using gearbox accessories of the same poor quality as other peers. We spent hundreds of thousands of dollars to build our own gearbox components, which increased the life of the machine by 100%
3. Two Man Operated Tea Plucking Machine after 20 years of continuous optimization and improvement, now all parts are produced by ourselves, we ensure that every part is of the best quality, and the service life is increased by 100% compared with peers!

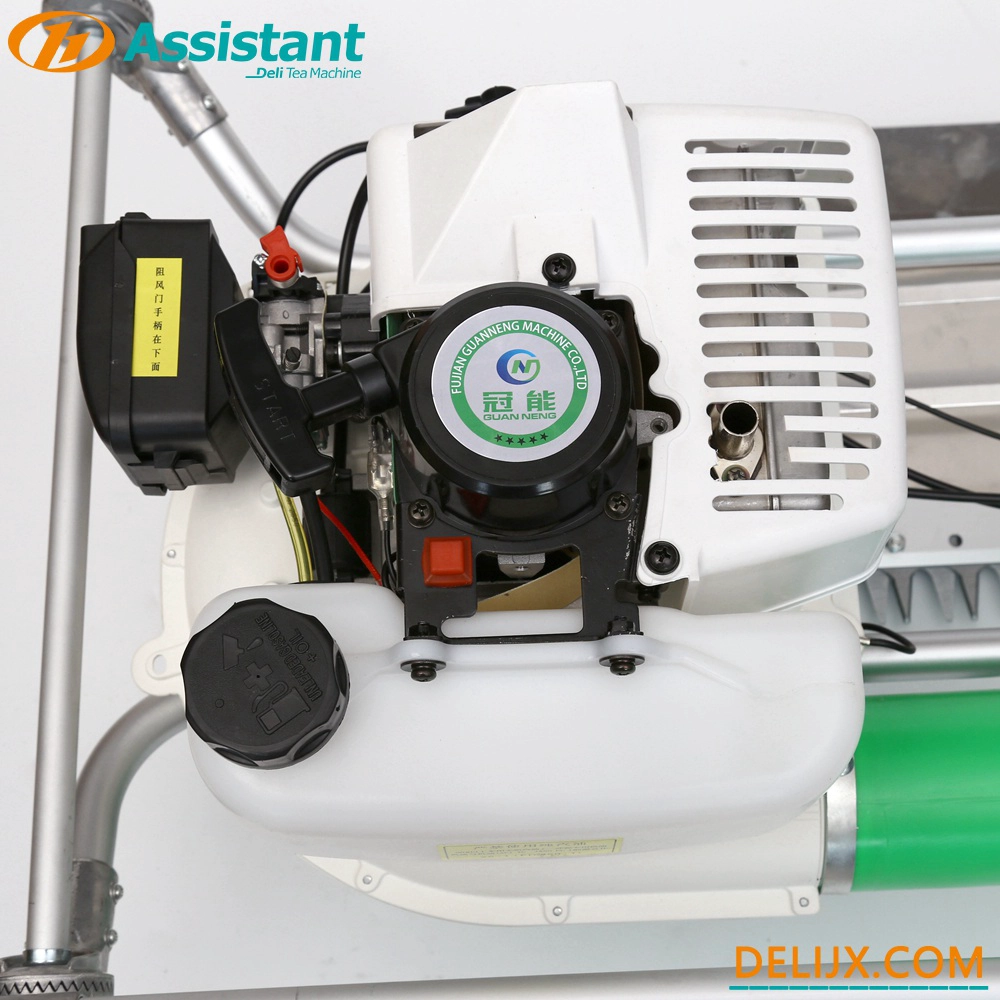

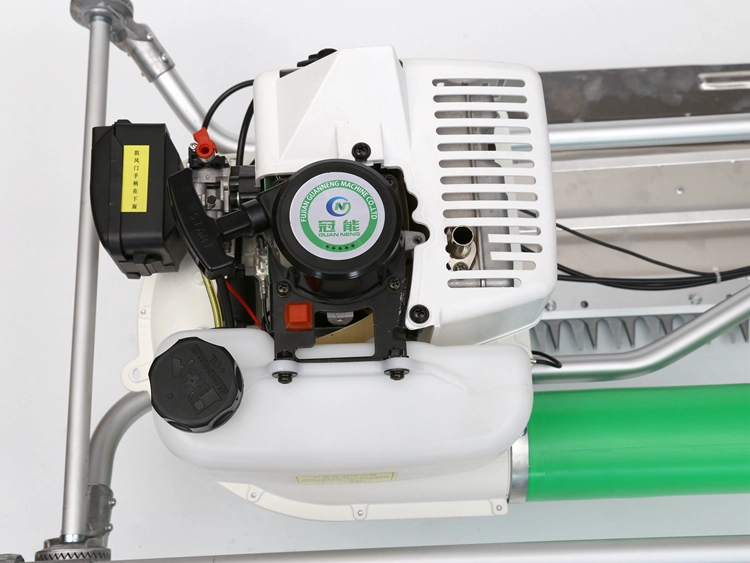

Our self-developed gasoline engine has low noise, sufficient power and more fuel saving.

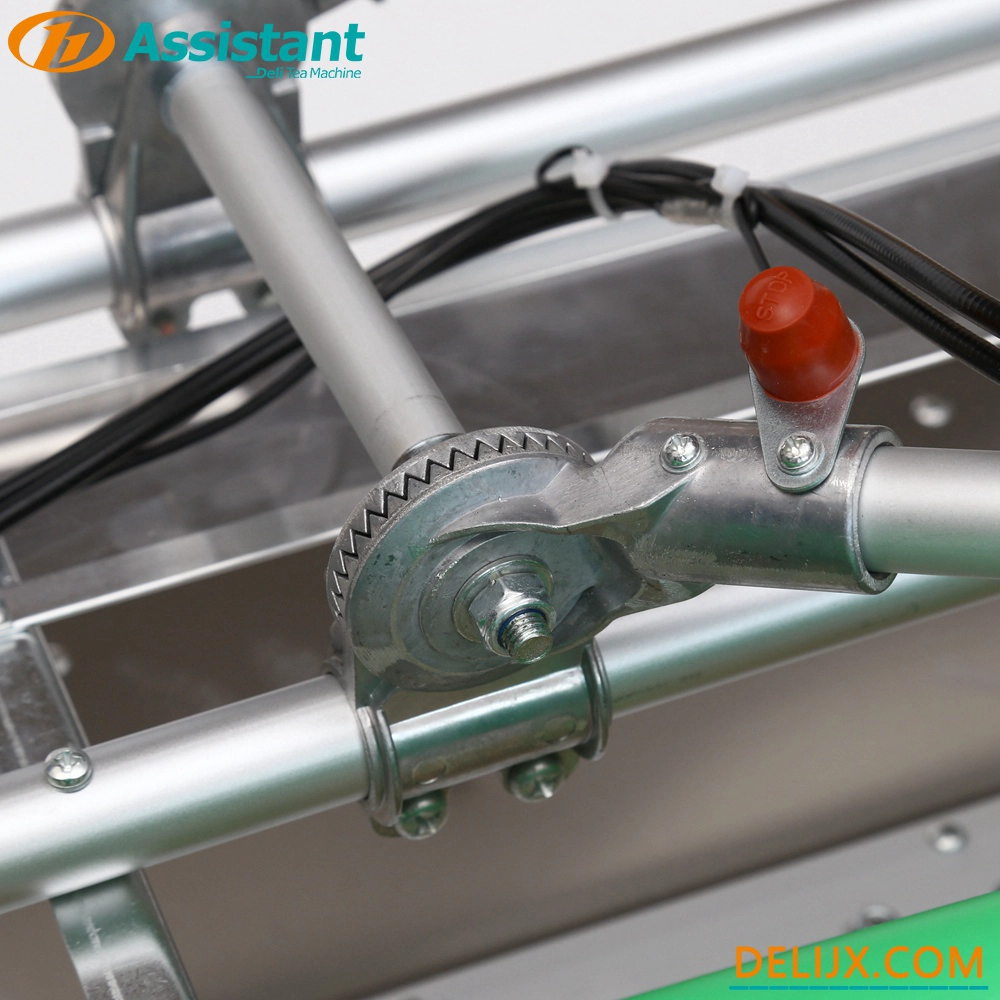

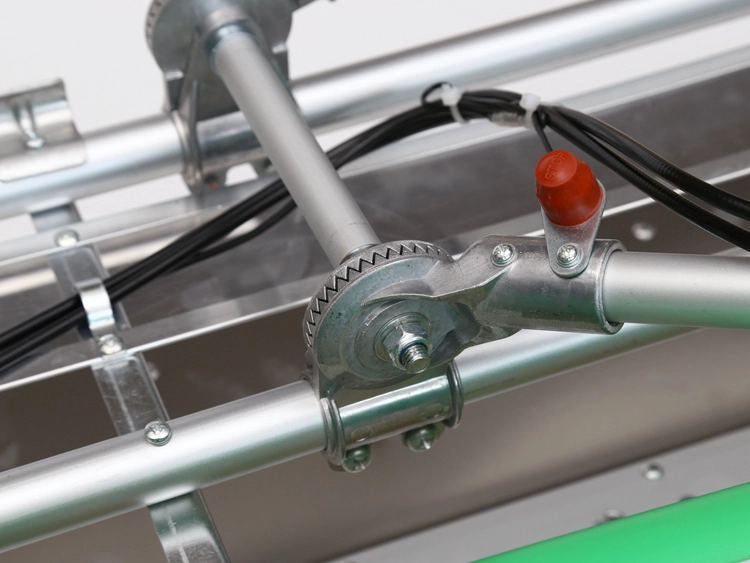

Gear type clasp design, high strength, not loose, tea picking process more relaxed

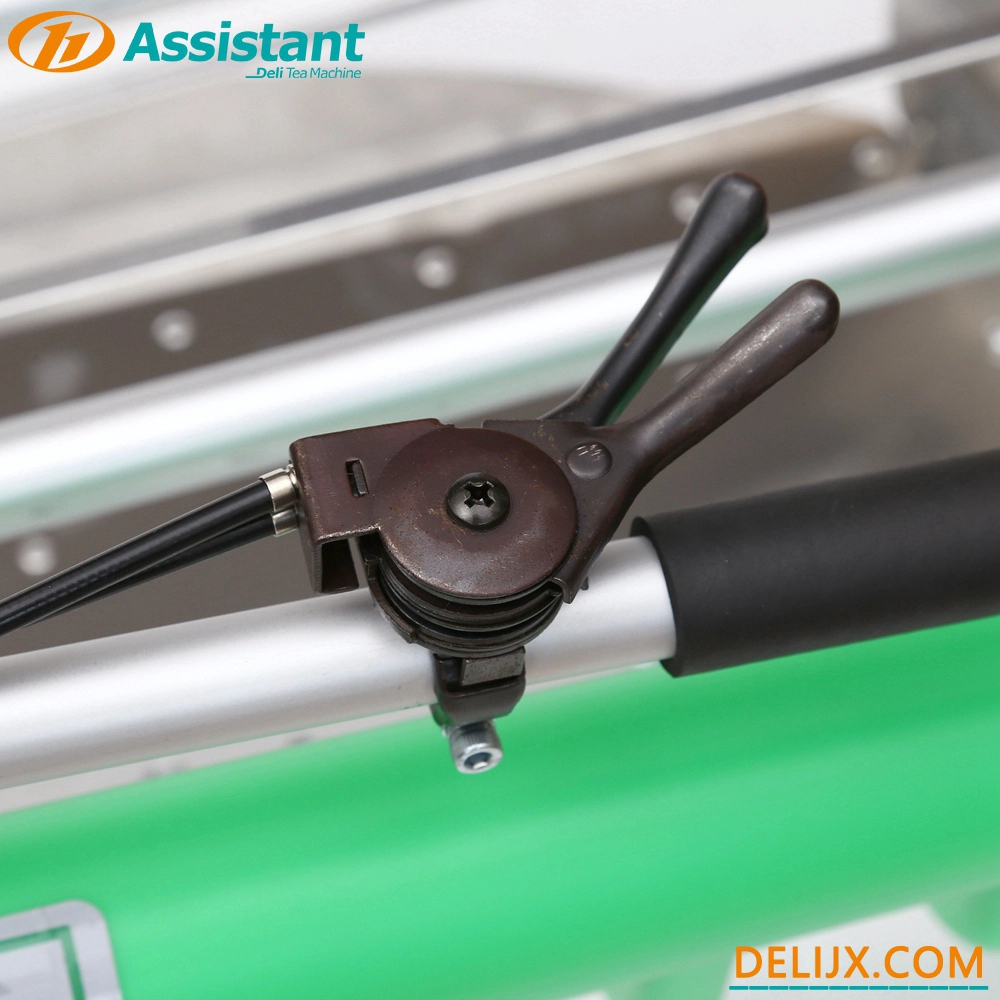

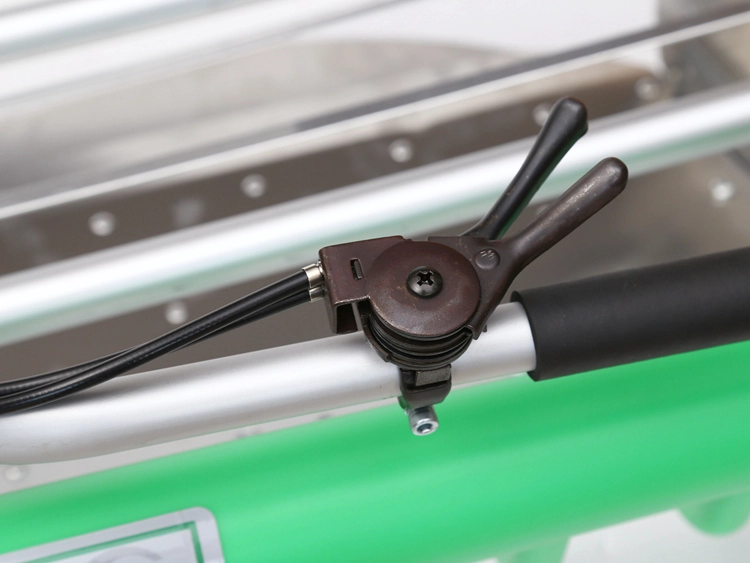

Clutch and throttle switch integrated design, made of high strength alloy, service life increased by 100%

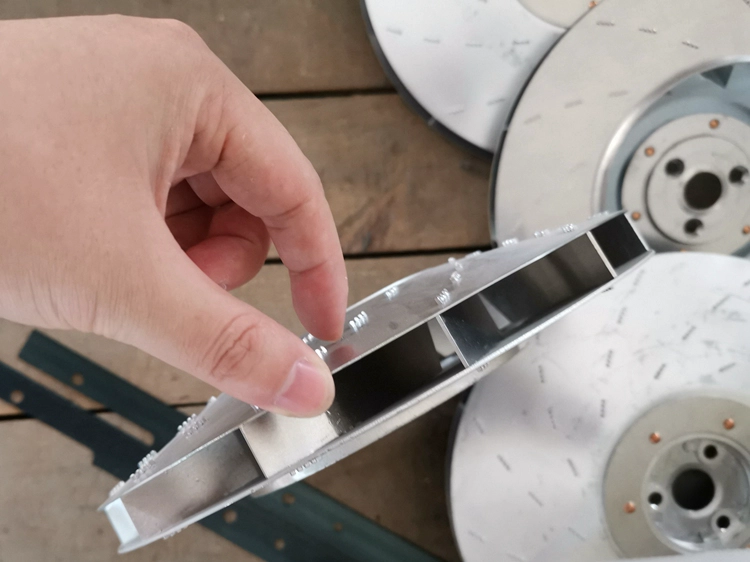

Independently designed fan blade and fan cover, plastic fan and aluminum fan are available for higher strength and more sufficient air volume

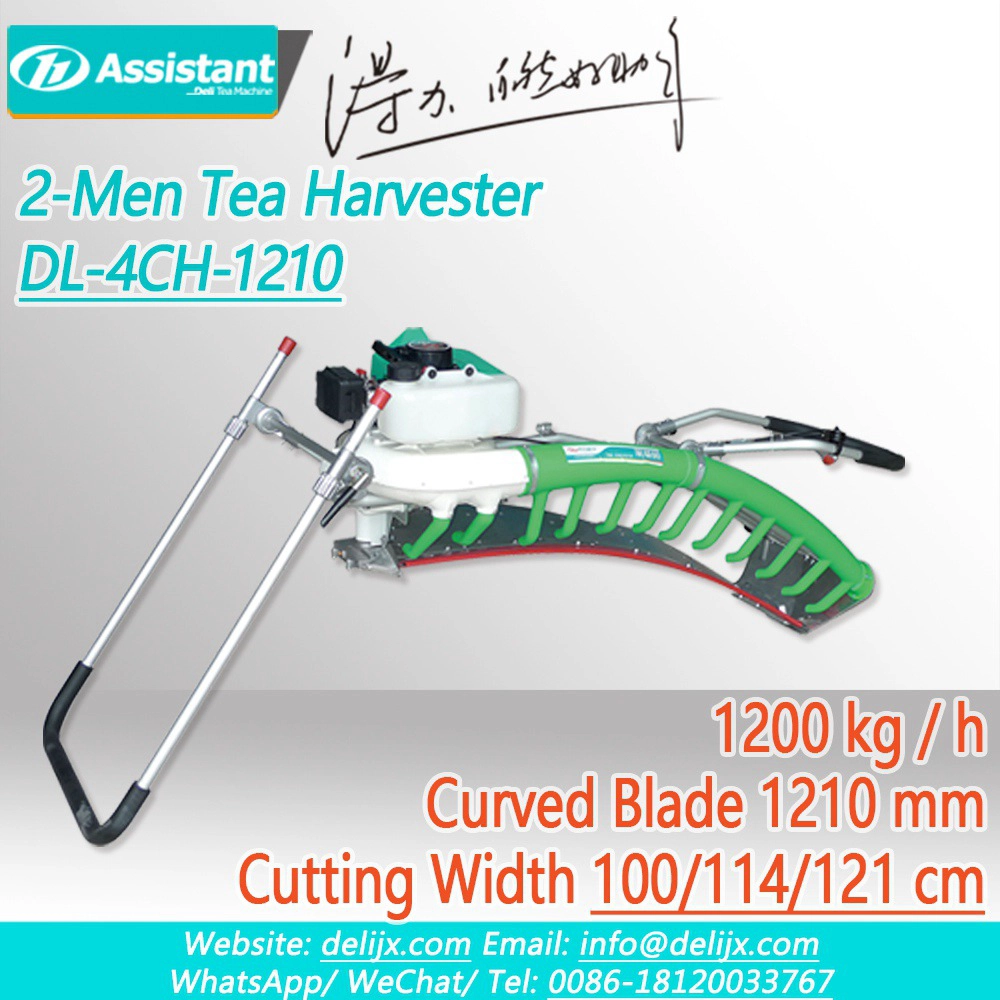

Two Man Operated Tea Plucking Machine specification list:
| Model
|
DL-4CH-1210
|
| Engine model
|
G4K
|
| Cutting width
|
1210/1140/1000 mm
|
| Engine power
|
2.2kw / 2.9HP
|
| Engine stroke
|
2 stroke
|
| Displacement
|
41.5CC
|
| Cooling type
|
Air cooling
|
| Blade type
|
Curved type
|
| Packing size
|
142×52×45cm
|
| Weight
|
29kg
|
Specification of all of Two Man Operated Tea Plucking Machine.
| Model
|
Cutting Width
|
Engine
|
Power
|
| DL-4CP-1210
|
1210/1140/1000 mm
|
G4K
|
2.2 KW
|
| DL-4CH-1210
|
1210/1140/1000 mm
|
G4K
|
2.2 KW
|
If you have special need, it can be customized according to the needs of customers.
